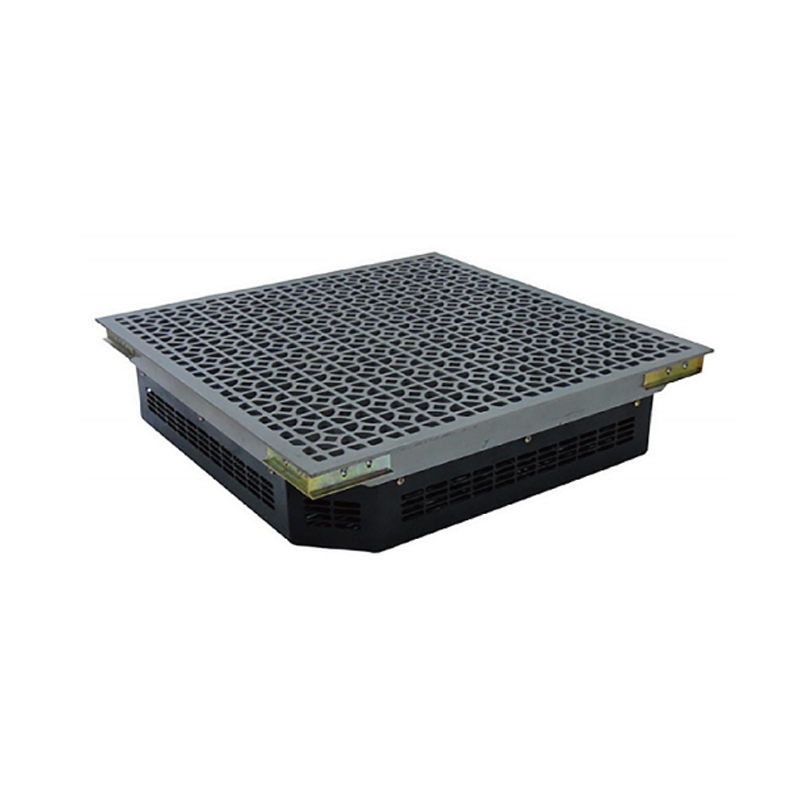

Aluminum Grate Anti-Static Access Floor
Characteristics
1. Solid structure, strong bearing capacity and over striking capacity.
2. Complete accessories, flexible combination.
3. High flexibility.
4. Easy to handle and install floor materials.
5. Lightweight floor and system weight.
6. Adjustable floor height (up to 1000mm according to customers requirement).
Technical Specification
| Intermationa | Size (mm) | Fire Performance | Concentrated load | Impact load (N) |
UItimate load (N) |
Uniform load (N/m²) |
Rolling load(N) | |||
| (LB) | (N) | (Kg) | 10/Times | 10000/Times | ||||||
| FS800 | 600x600x40 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| FS1000 | 600x600x40 | A | ≥1000 | ≥4550 | ≥453 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| FS1250 | 600x600x50 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
| FS1500 | 600x600x50 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
| FS2000 | 600x600x50 | A | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥4600 | 8900 | 8000 |
