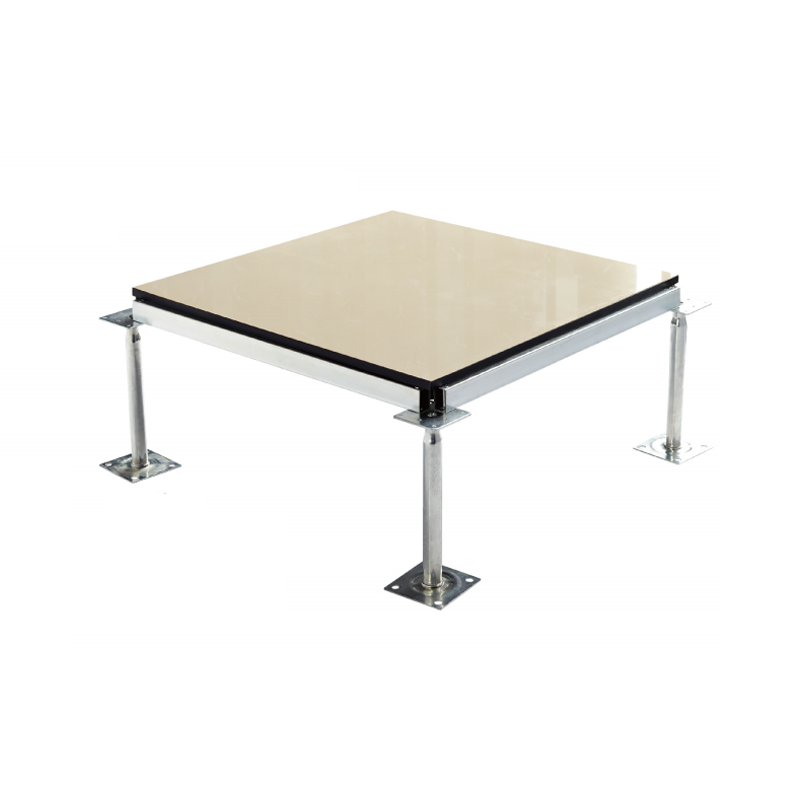

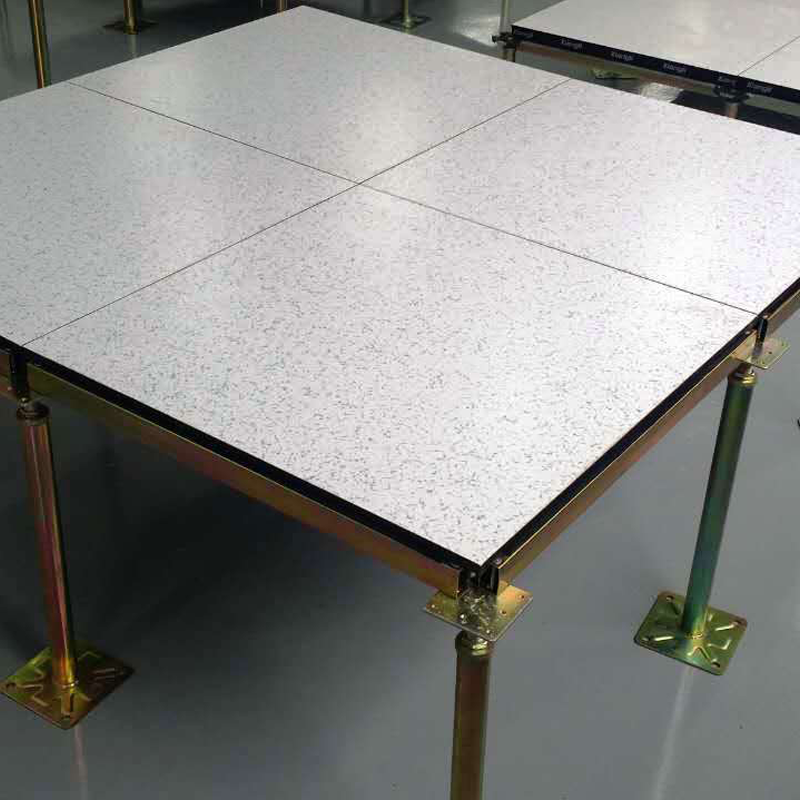

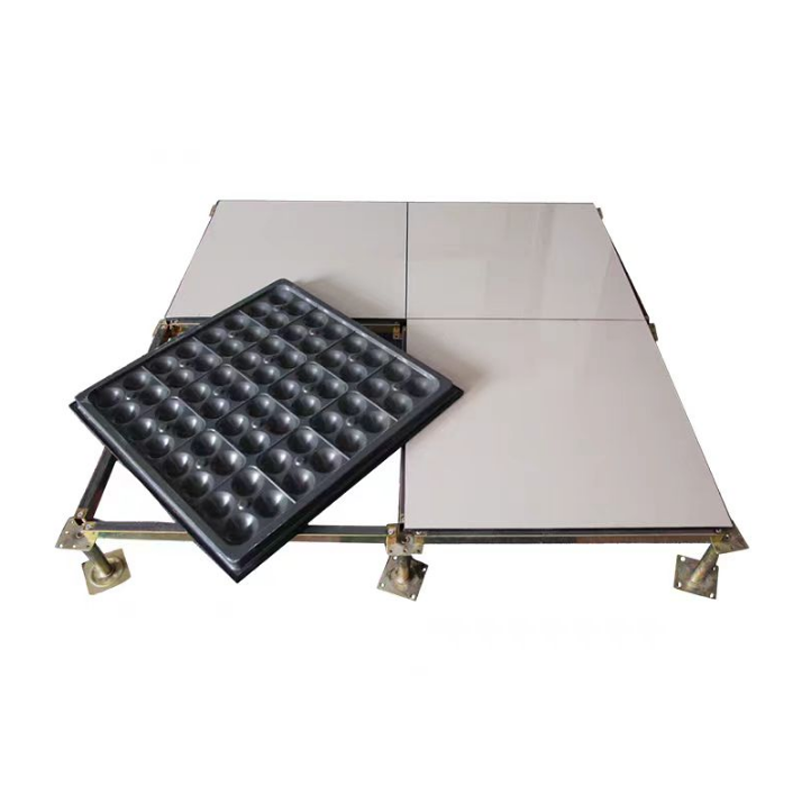

All Steel Anti-Static Access Floor With Ceramic Covering
Characteristics
1. Made of all-steel, high mechanical strength, strong bearing capacity, good fire performance.
2. Surface electrostatic plastic, soft light, wear - resistant, anti - corrosion, no cracking.
3. Good wear resistance and anti-static performance, anti-polution, easy to clean, decorative, fire-proof.
4. Rich design and color, high dimensional accuracy, good leveling, wear resistance, long life, not dust, easy to clean maintenance, no need wax.
5. Inherited the ceramic wear resistance and high bearing capacity of steel plate, not easy to deformation.
6. The ceramic tile completely avoid the problem of warpage.
Technical Specification
| International | Size (mm) |
Fire Performance | Concentrated load | Impact load (N) |
UItimate load （N) |
Uniform load (N/m²) |
Rolling load(N） | |||
| (LB) | (N) | (Kg) | 10/Times | 10000/Times | ||||||
| FS662 HDG60045QD |
600*600*45 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2946 | 2356 |
| FS800 HDG60045QD |
600*600*45 | A | ≥800 | ≥3550 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| FS1000 HDG60045BD |
600*600*45 | A | ≥1000 | ≥4550 | ≥453 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| FS1250 HDG60045ZD |
600*600*45 | A | ≥1250 | ≥5560 | ≥567 | ≥720 | ≥16680 | ≥33000 | 5560 | 4450 |
