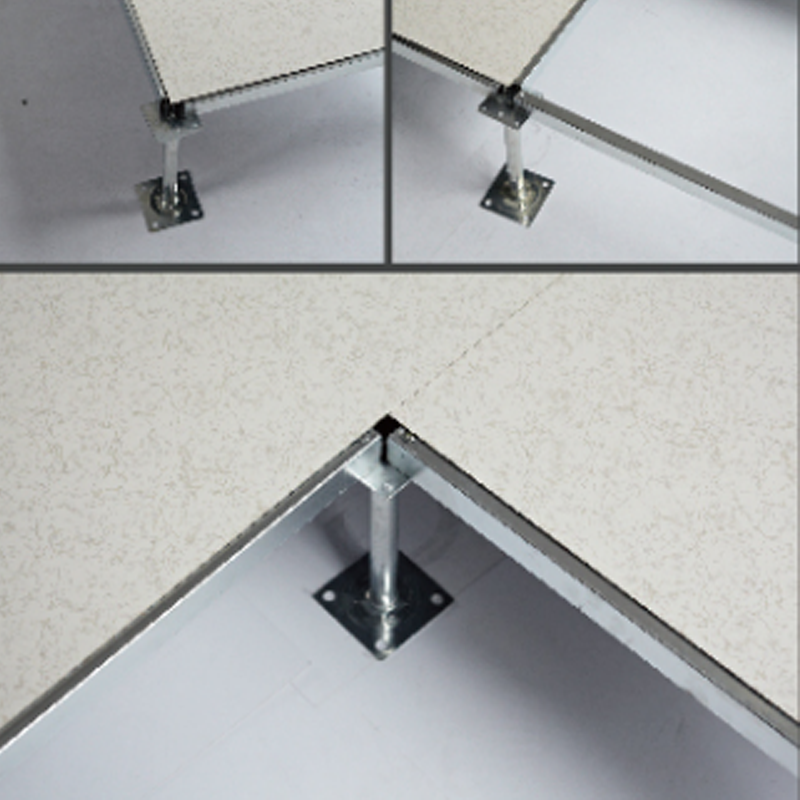

All Steel Anti-Static Access Floor Without Edge Trims

Short Description:

All steel anti-static fioor needs to select high-quality steel plate of sufficient thickness, after stamping and welding (64 welding points), it is reshaped, and filled with high-strength foam cement, so that the edges and corners of all steel anti-static floor are hard and incomparable, greatly enhancing the bearing capacity, enough flatness and decoration of the floor edges.

Send email to us

Product Details

Product Video

Characteristics

1. Made of steel, large bearing capacity, strong impact resistance.

2. Filled with special foam cement, which makes it feel comfortable and stable, with good sound absorption, heat insulation and fire resistance.

3. Use imported glue, wear resistance, no foaming, no degumming, steel shell electrostatic spray, lighting, wear resistance, decorative strong.

4. All around support, easy to install, flexible assembly, lower space can be used for air conditioning ventilation, easy maintenance.

5. Height of pedestal: 80mm-300mm, other height can be customized.

Technical Specification

International	Size (mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimate load （N)	Uniform load (N/m²)	Rolling load(N)
International	Size (mm)	Fire Performance	(LB)	(N)	(Kg)	Impact load (N)	Ultimate load （N)	Uniform load (N/m²)	10/Times	10000/Times
FS440	600x600x35	A	≥440	≥196	≥20c	≥295	≥5880	≥9272	1958	1566
FS662	600x600x35	A	≥662	≥2950	≥301	≥445	≥8850	≥12500	2946	2356
FS800	600x600x35	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x35	A	≥1000	≥4550	≥453	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x35	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600x35	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
FS2000	600x600x35	A	≥2000	≥8900	≥906	≥1340	≥26700	≥4600	8900	7120
