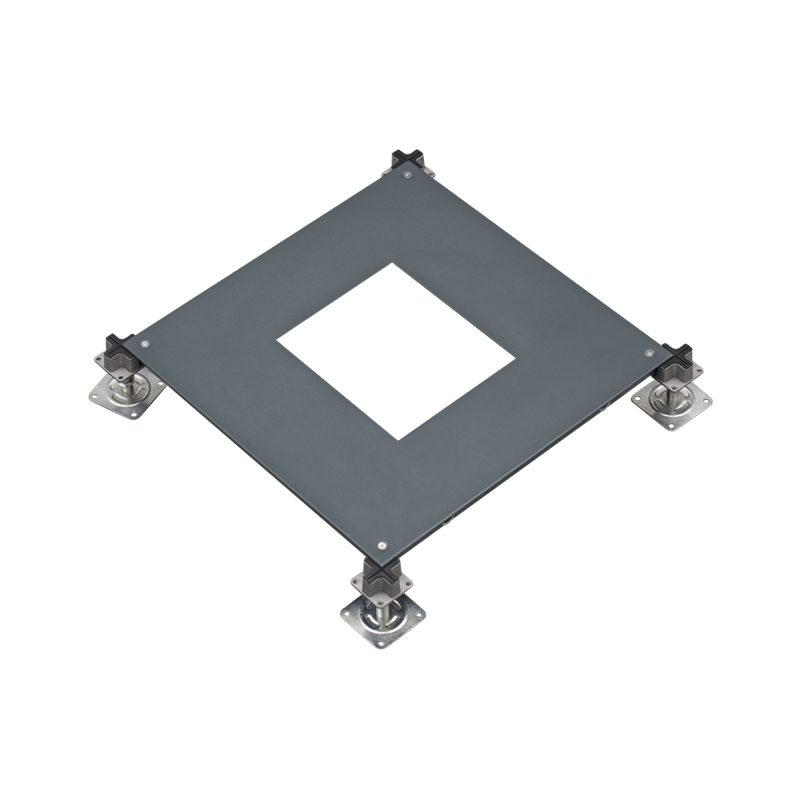

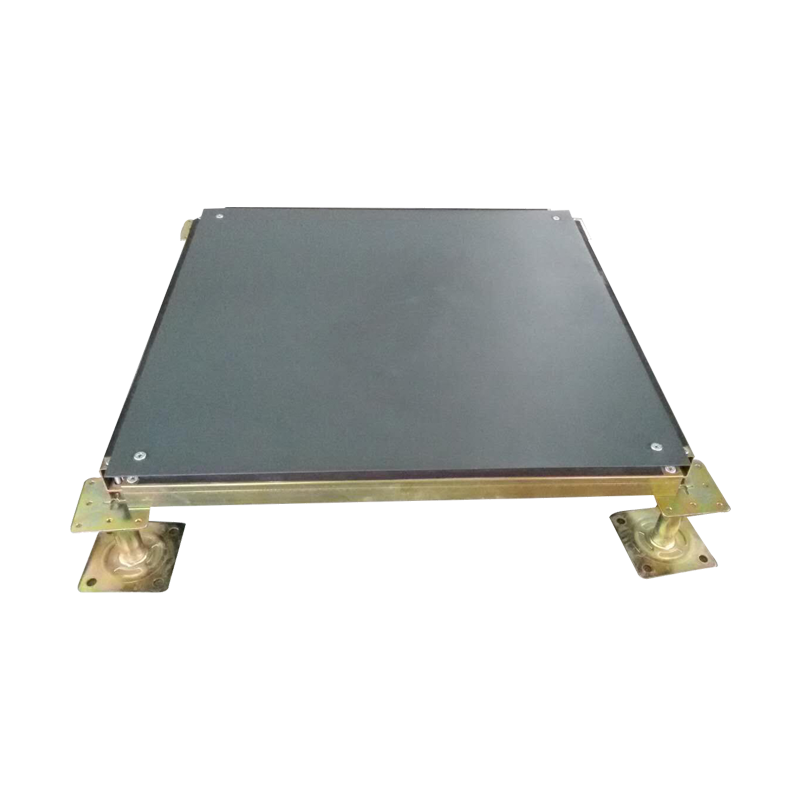

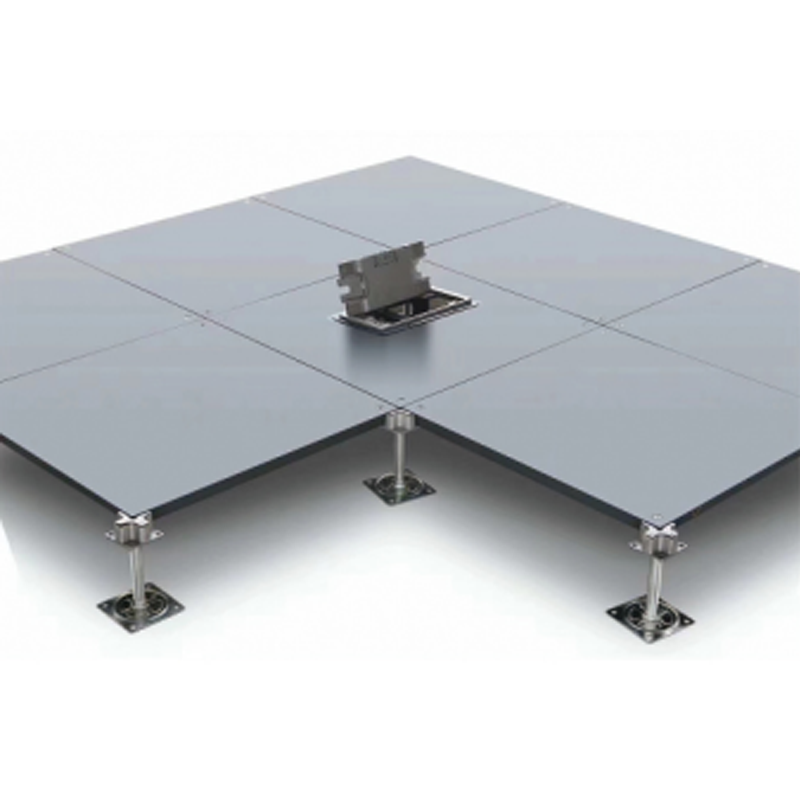

OA Access Floor

Short Description:

High quality cold-rolled steel sheet is spot welded alter drawing. The outer surface is treated byspraying plastics alter phosphating. The inner cavity is filed with foamed cement, and the four comer:are provided with comer keyholes. The minimum board height can be 5cm, and trunking can beadded around the floor according to the use requirements. The wiring is more flexible, which canseparate strong and weak current, facilitate maintenance, save builkding space, and reflect theoverhead function of the floor.


Product Details

Product Video

Characteristics

1. All steel combination, moldmng, strong beanng. Capacity, good fire prevention and corrosion protection.

2. Modular design, good interchangeabity, convenient assembly and maintenance.

3. The fomed floor has comer lock holes to ensure the overall stability of the floor installation.

Technical Specification

Intermationa Size (mm) Fire Performance Concentrated load Impact load
(N)
Ultimate load
(N)
Uniform load
(N/m²)
Rolling load(N)
(LB) (N) (Kg) 10/Times 10000/Times
FS440 500x500x28 A ≥440 ≥1960 ≥200 ≥295 ≥5880 ≥9272 1958 1566
600x600x33
FS662 500x500x28 A ≥662 ≥2950 ≥301 ≥445 ≥8850 ≥12500 2946 2356
600x600x33
FS800 500x500x28 A ≥800 ≥3350 ≥363 ≥536 ≥11250 ≥16100 3560 2670
600x600x33
FS1000 500x500x28 A ≥1000 ≥4550 ≥453 ≥670 ≥13350 ≥23000 4450 3560
600x600x33
FS1250 500x500x28 A ≥1250 ≥5560 ≥567 ≥670 ≥16680 ≥33000 5560 4450
600x600x33
FS1500 500x500x28 A ≥1500 ≥6660 ≥680 ≥780 ≥26690 ≥43000 6670 5560
600x600x33
