OA Access Raceway Floor

Short Description:

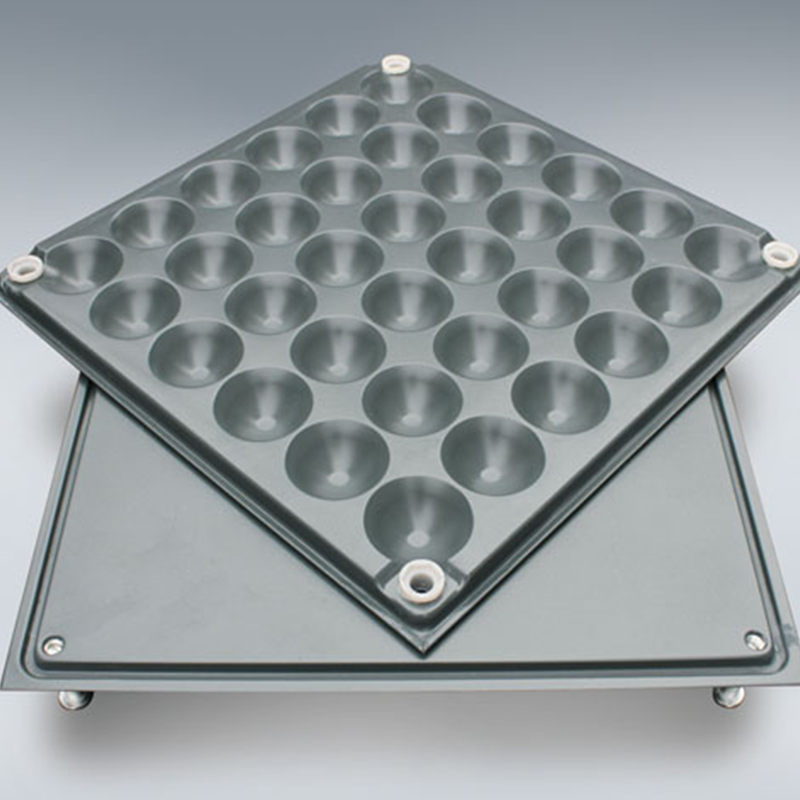

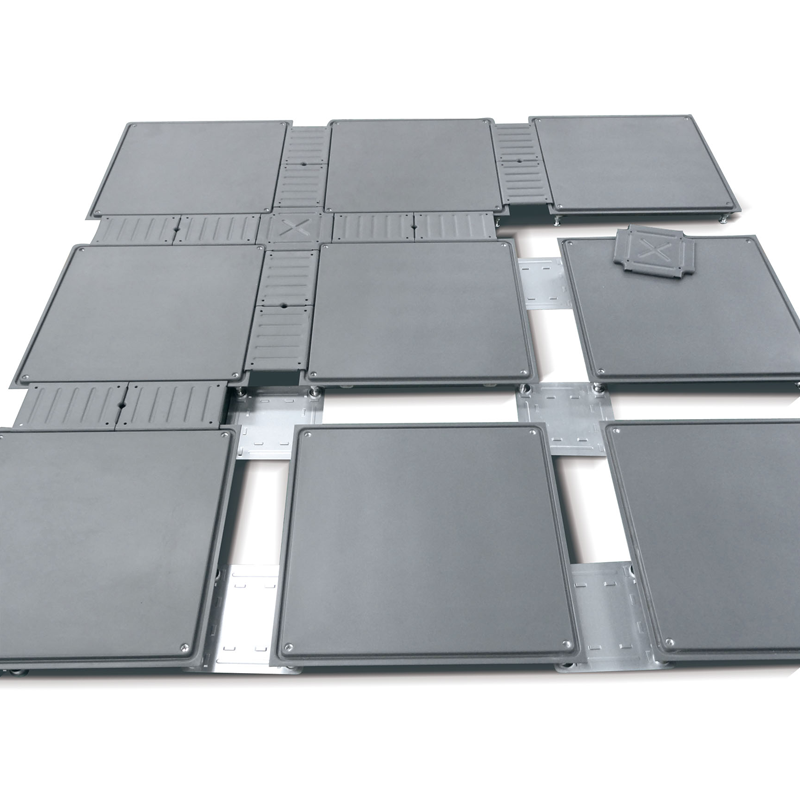

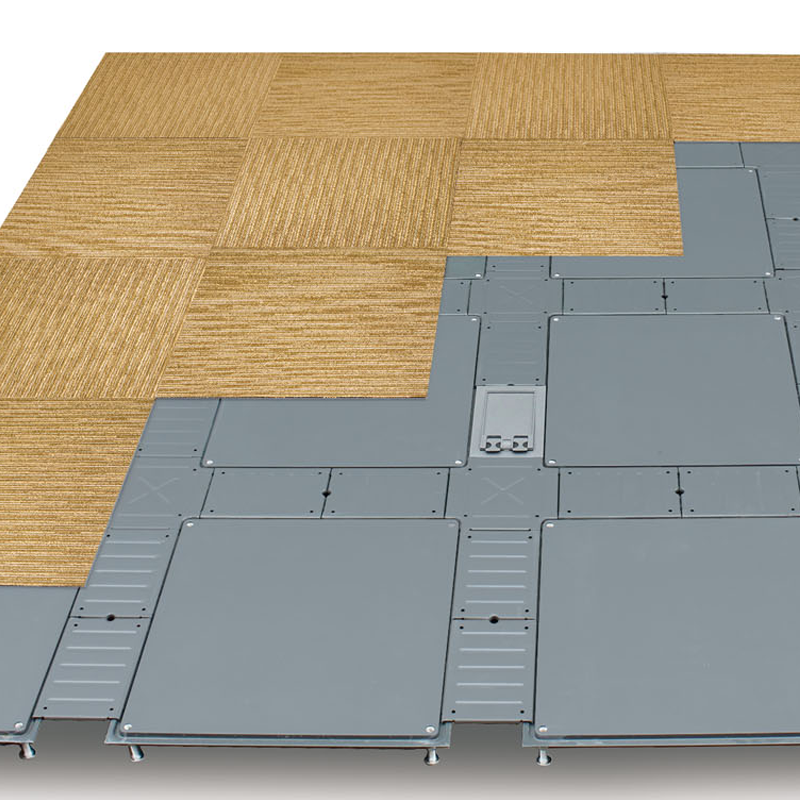

High quality cold-rolled steel sheet is spot welded after drawing. The outer surface is treated by spraying plastics after phosphating. The inner cavity is filled with foamed cement, and the four comers are provided with comer keyholes. The minimum board height can be 5cm, and trunking can be added around the floor according to the use requirements. The wiring is more flexible, which can separate strong and weak current, facilitate maintenance, save buikding space, and reflect the overhead function of the floor.

Send email to us

Product Details

Product Video

Characteristics

1. All steel combination, molding, strong bearing. Capacity, good fire prevention and corrosion protection.

2. Modular design, good interchangeabiity, convenientassembly and maintenance.

3. The fomed floor has comer lock holes to ensure theoverall stability of the floor installation.

Technical Specification

Intermationa	Size (mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimate load (N)	Uniform load (N/m²)	Rolling load(N)
			(LB)	(N)	(Kg)				10/Times	10000/Times
FS440	500x500x28	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1958	1566
	600x600x33
FS662	500x500x28	A	≥662	≥2950	≥301	≥445	≥8850	≥12500	2946	2356
	600x600x33
FS800	500x500x28	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
	600x600x33
FS1000	500x500x28	A	≥1000	≥4550	≥453	≥670	≥13350	≥23000	4450	3560
	600x600x33
FS1250	500x500x28	A	≥1250	≥5560	≥567	≥670	≥16680	≥33000	5560	4450
	600x600x33
FS1500	500x500x28	A	≥1500	≥6660	≥680	≥780	≥26690	≥43000	6670	5560
	600x600x33
